Intro：The KBZ series intelligent contactless compensating AC voltage regulator is a new generation of fast voltage regulation equipment successfully developed by our company based on years of production experience in compensating power stabilization devices.
Product Details:
Product Overview

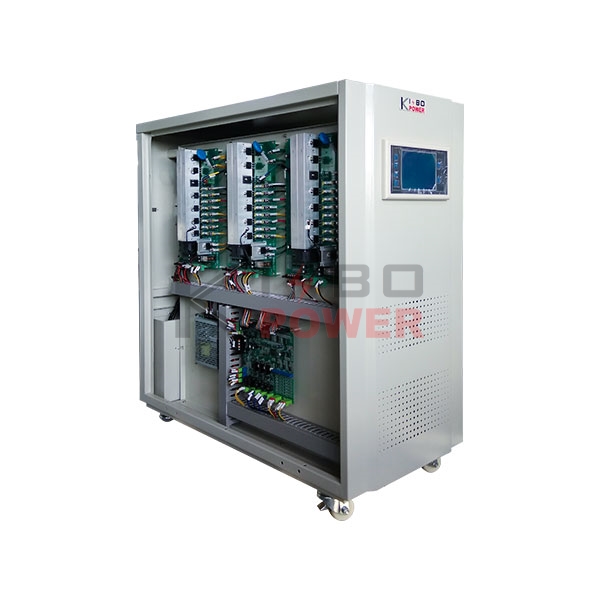

The KBZ series intelligent contactless compensation AC voltage stabilizer is a new generation of fast voltage stabilizing equipment successfully developed based on our company's many years of experience in producing compensation-type power voltage stabilizers. It utilizes innovative 32-bit computing and measurement chip control technology, fast true RMS voltage sampling technology, current zero-crossing switching technology, and rapid compensation voltage stabilization technology. It integrates intelligent metering, rapid voltage stabilization, and fault diagnosis, making the product safe, efficient, and precise. The product mainly consists of an isolation transformer, SCR module, CPU control core, rapid voltage stabilization technology, and safety protection devices. It achieves full contactless control, ensuring safety, efficiency, energy saving, and environmental protection, perfectly combining SCR switching technology and transformer technology.
The product is widely used in industrial, transportation, postal, defense, railway, and scientific research fields, for large electromechanical equipment, metal processing equipment, production lines, elevators, medical devices, embroidery and textile devices, air conditioners, radio and television equipment, household appliances, and building lighting, where stable voltage is required.
Human-Machine Interface
The KBZ series intelligent contactless compensation AC voltage stabilizer features a large LCD display. Through the LCD screen, parameters such as voltage, current, fault status, and operating mode can be intuitively displayed. Its voltage stabilization accuracy, output voltage, and operating mode can be set via the panel, making operation simple.
Technical Specifications
| Input | Stabilization Range | Three-phase 380V ±15% to ±40%, single-phase 220V ±15% to ±40% selectable |
| Frequency | 47Hz~63Hz | |
| Rated Voltage | Phase voltage 220V, line voltage 380V (can also be set to other voltages, e.g., 400V, etc.) | |
| Output | Voltage Regulation | ±1% |
| Response Time | Fast (20ms) | |
| Waveform Distortion | No additional waveform distortion (static) | |
| Efficiency | ≥98% | |
| Three-phase Unbalance | Automatic three-phase balance | |
| Delayed Output | Delayed re-output (protection device is not impacted) | |
| Protection | Over-voltage | Output phase voltage exceeds 10%, output is cut off and switched to bypass |
| Under-voltage | Output phase voltage is below 10%, output is cut off and switched to bypass | |
| Missing Phase | Equipped (automatic shutdown) | |
| Overload | Electronic detection, overload cut-off within 3 minutes | |
| Short Circuit | Electronic detection and circuit breaker double protection | |
| Bypass | Automatic bypass | |
| Voltage | A, B, C, ΣABC three-phase effective value LCD display | |
| Current | A, B, C, ΣABC three-phase current effective value LCD display | |
| Indication | Working Status | Stabilized status/city power status |
| Abnormal | Over-voltage, under-voltage, overload, circuit breaker | |
| Human-machine Interface | Working Mode | Intelligent human-machine interface control panel, convenient to query various parameters, and can lock the machine within a specified time |
| Overload Capacity | 5 times rated current for 1 second |
Performance Features
| Fast Response Speed | 12-bit high-speed AD sampling, 128 points sampled per waveform, single-chip digital signal processing, electronic module fast compensation |
| Multiple Adjustable Settings Available | Three-phase: When set to three-phase, AD simultaneously samples A, B, C three-phase voltages for true effective value calculation, outputs control instructions for compensation, effectively improving three-phase voltage imbalance |
| Single-phase: When set to single-phase, automatically adjusts single-phase voltage to ensure that single-phase voltage remains within the precision range, especially suitable for single-phase loads | |
| Automatic Judgment: Microcomputer automatically analyzes and determines whether to use three-phase or single-phase | |
| Measurement Technology Innovation | 12-bit AD sampling, single-chip digital waveform and true effective value calculation |
| Accurate Control Without Errors | Large-scale programmable logic controller with perfect integration with single-chip |
| Humanized Interface | Operational panel touch buttons can set various parameters (output voltage, stabilization, protection functions) |
| Output Waveform Without Distortion | No additional waveform distortion, synchronous, phase-locked, sine wave superposition compensation principle |
| Harmonic Resistance | True effective value voltage detection |
| Wide Load Range | Resistive, capacitive, and inductive loads are all adaptable |
| Soft Start Impact Resistance | Equipped with voltage stabilization re-output function |
| Comprehensive Protection Function | When over-voltage, under-voltage occurs, it can automatically switch to bypass within 1 second, and has complete functions for missing phase, overload, short circuit protection, and post-fault sound and light alarm |
| Voltage and Current Display | Voltage, current true effective value LCD display |
Working Principle

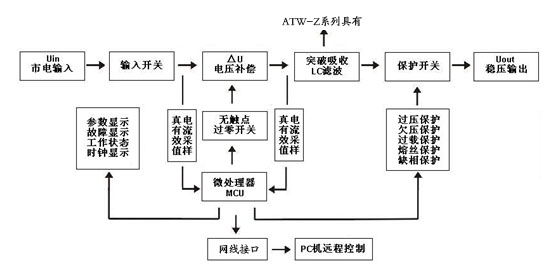

The KBZ series intelligent contactless AC voltage stabilizer utilizes microcomputer (MCU PLD 12-bit high-speed AD) intelligent detection. It sends output commands to control the rapid switching of electronic modules (IGBT or SCR), and maintains stable output voltage through the principle of same-frequency transformer, phase locking, and sine wave superposition compensation.
