Category：Transformer
Address：No. 121, Huancheng Road, Picheng Town, Danyang City, Jiangsu Province, China
Tel：400-1668-021
Email：kinbo@kinbopower.com

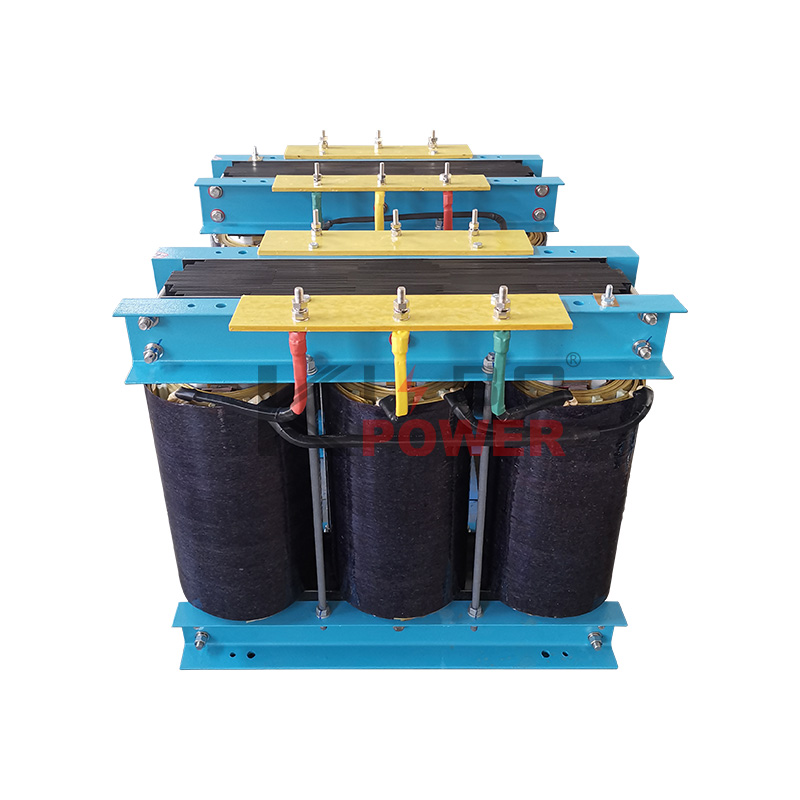

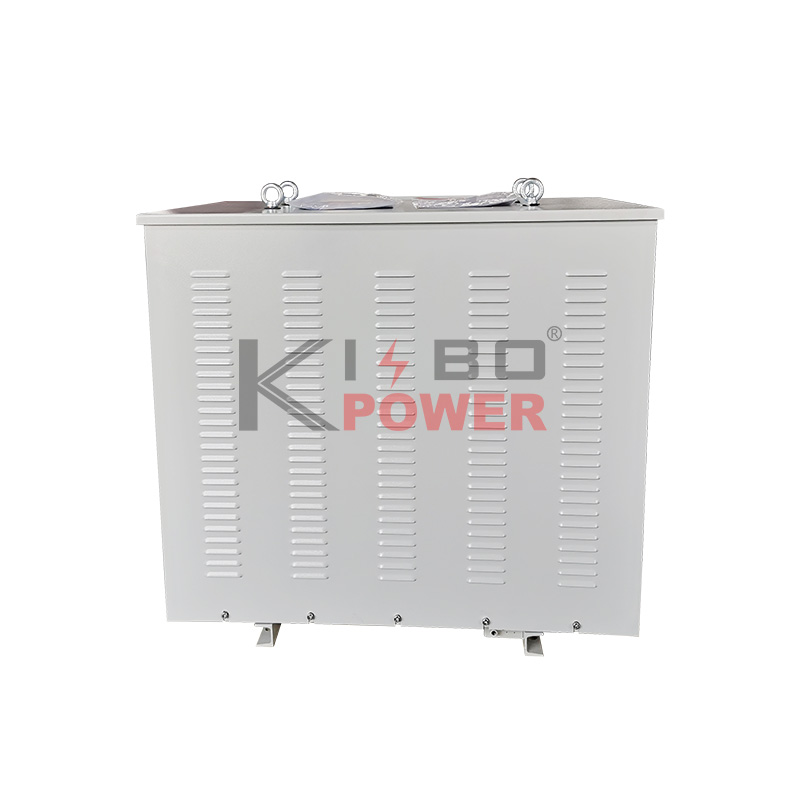

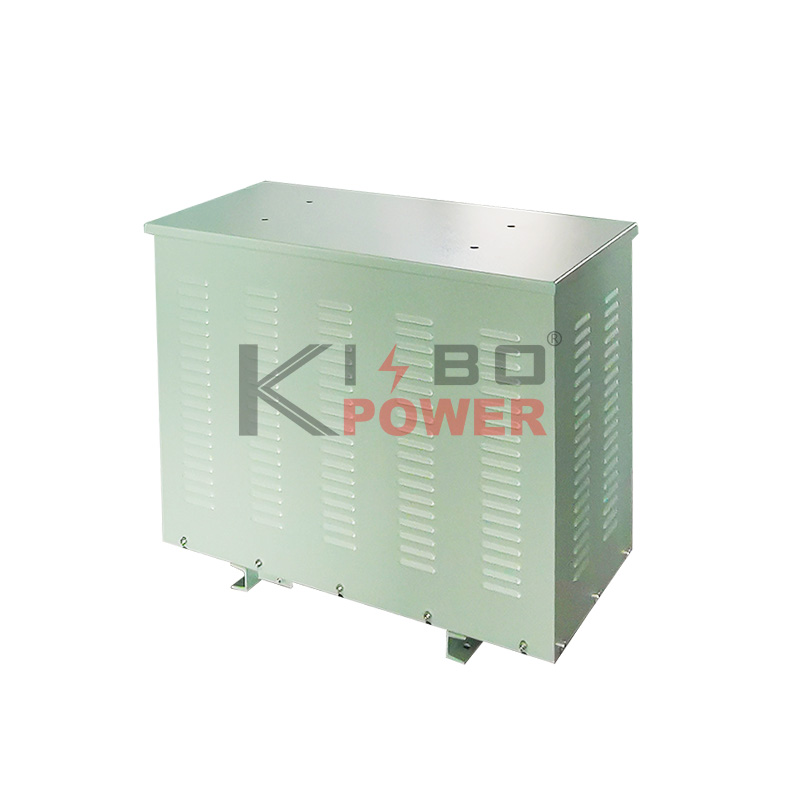

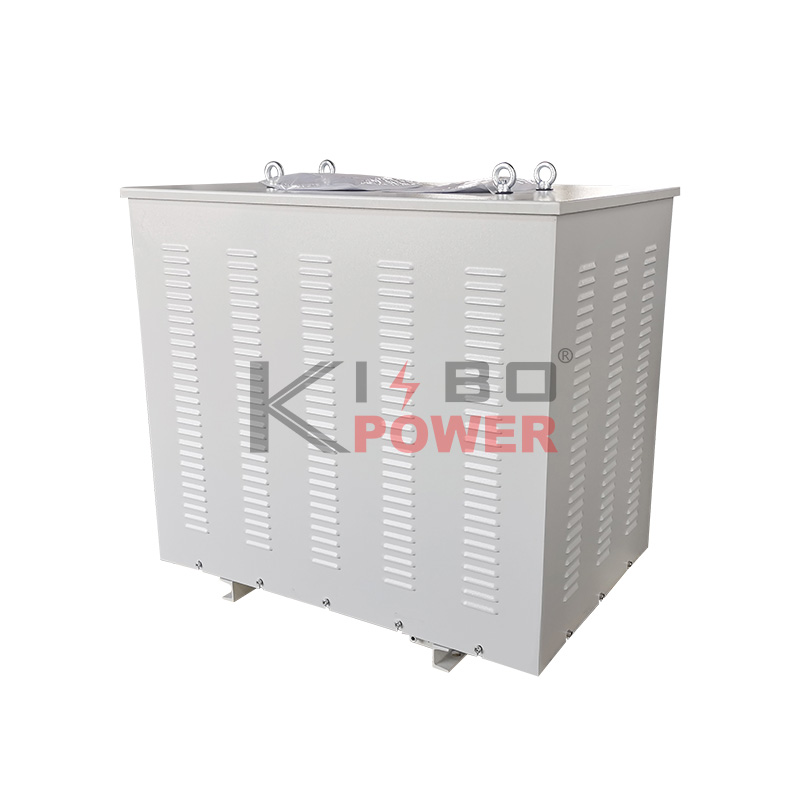

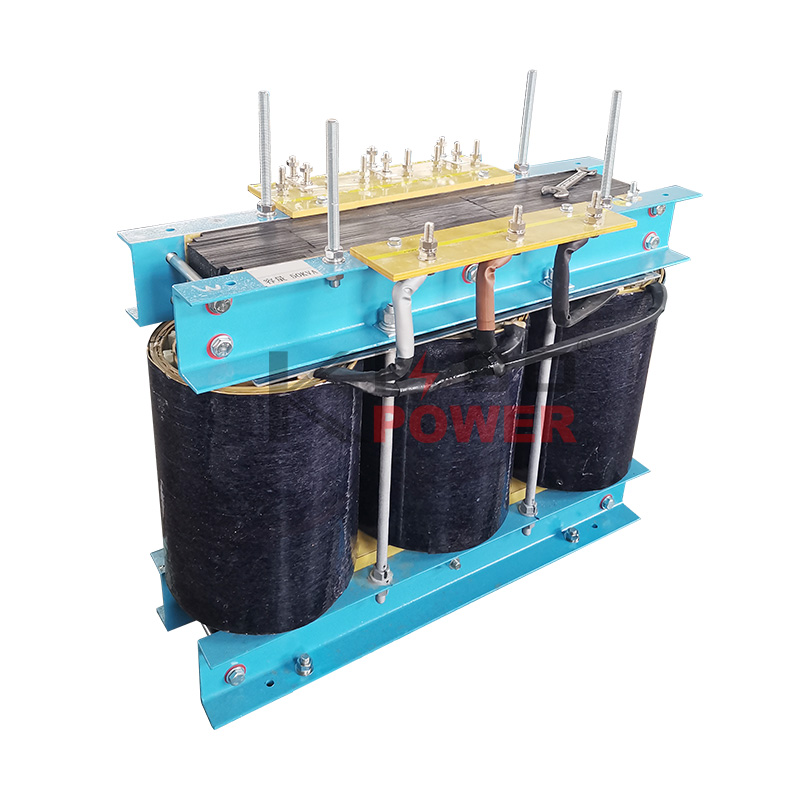

Intro：Our company designs and manufactures high-quality isolation transformers for customers, featuring excellent anti-interference isolation performance. They can be widely used in power plants, ships, chemical industries, smelting, subways, airports, stations, shore power docks, industrial and mining enterprises, as well as power distribution in tunnels.
Technical Parameters
Frequency: 50/60Hz
Phase: Three-phase
Input Voltage: Customizable upon request
Output Current: Customizable upon request

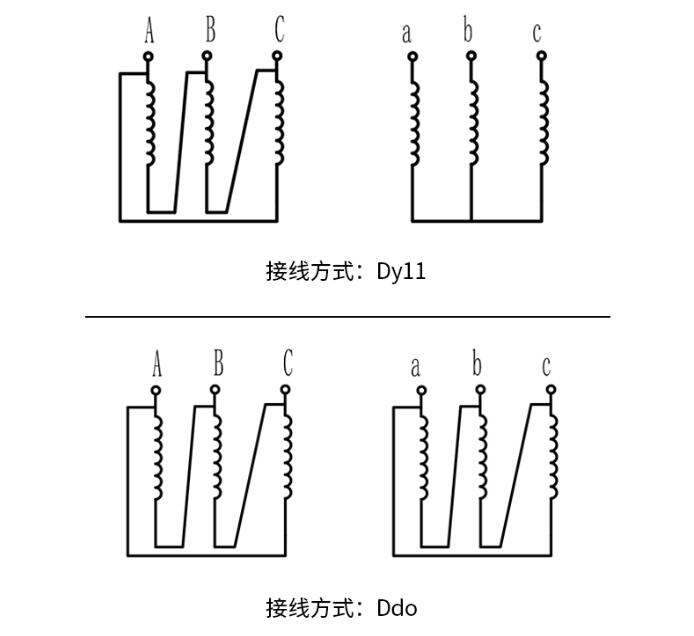

Wiring Method: Dy11, Ddo
Cooling Method: Natural cooling
Protection Level: IP00
Insulation Class: F
Material: Copper
Insulation Resistance: Above 10MΩ at DC 1000V between each winding
Insulation Withstand Voltage: E-P, 3KV, 60 seconds
Temperature Rise: 100K
No-Load Output Voltage Error: ±1.5%
Load Voltage and Current Ratio: (Impedance Voltage) 4%
Efficiency: Greater than 98%
Maximum Operating Temperature: 155℃
Noise: ≤60dB (within 1 meter range)
Standards: GB1094.11-2007
