Intro：The inverter power transformer is a supporting power transformer developed and produced by Kinbo Technology, with capacities ranging from 500VA to 1000KVA. The product complies with VDE0550, IEC 439, JB5555, and national standards. The internal core of the transformer is made of high-quality, high-permeability silicon steel sheets, meeting various customer requirements and operating conditions, and designed for high efficiency.
Product Details:
Product Description

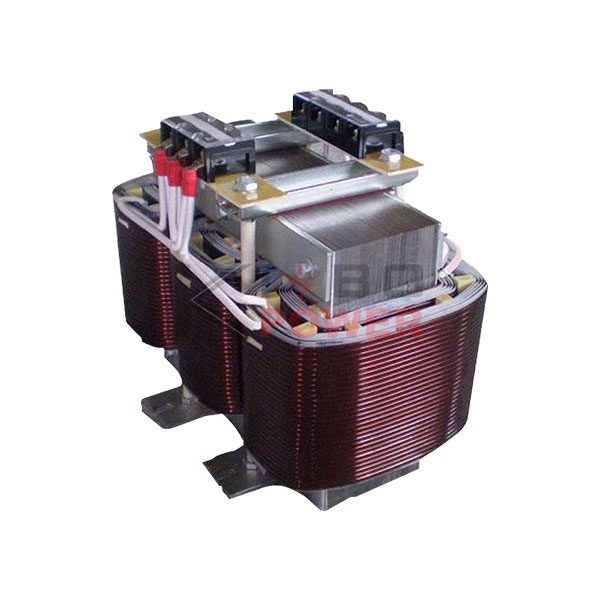

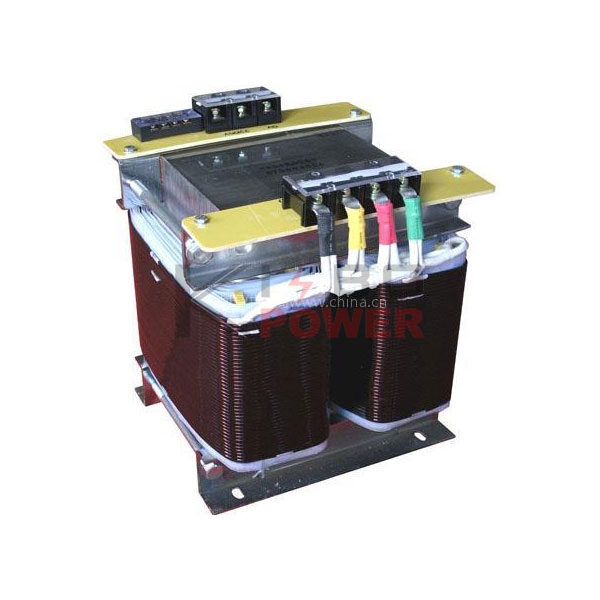

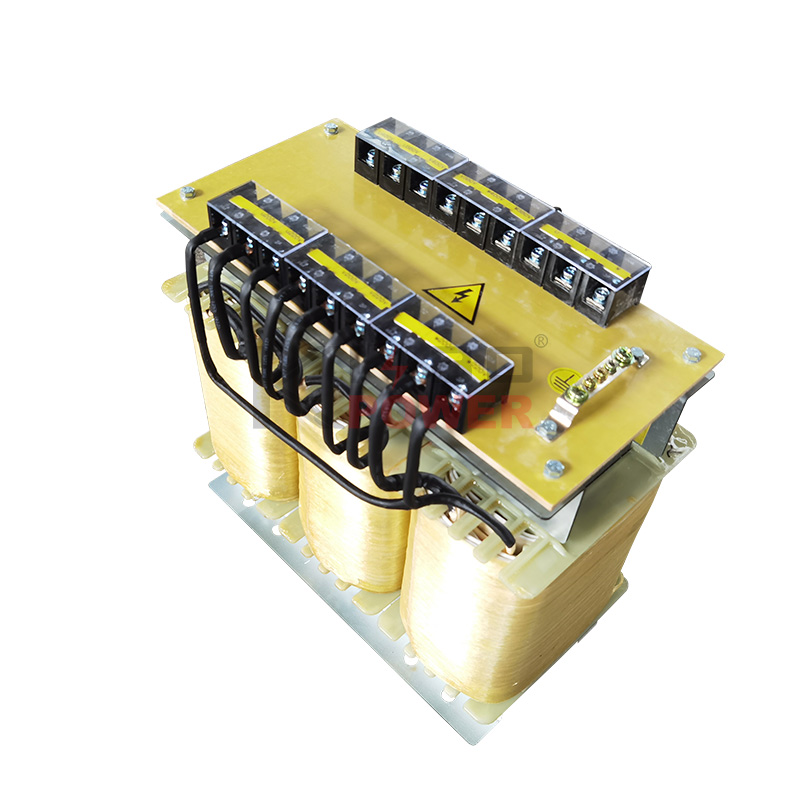

The inverter power transformer is a supporting power transformer developed and produced by Kinbo Technology, with capacities ranging from 500VA to 1000KVA. The product complies with VDE0550, IEC 439, JB5555, and national standards. The internal core of the transformer is made of high-quality, high-permeability silicon steel sheets, meeting various customer requirements and operating conditions, and designed for high efficiency. The internal insulation materials use high-quality, eco-friendly DMD composite materials, which feature high-temperature insulation, flame resistance, and moisture resistance. NOMEX paper can also be used according to customer requirements. It is a primary supporting product for UPS, EPS, and inverter power manufacturers.
| System Voltage | 380/220/110/96V |
| Capacity | 1 ~ 1200kVA |
| Phase Number | Single phase, Three phase |
| Efficiency | ≥98% |
| No-load Current | < 4% |
| Insulation Strength | 2000V, 1 minute puncture resistance |
| Insulation Class | F class (B class, H class optional) |
| Insulation Resistance (MΩ) | ≥2MΩ |
| Temperature Rise | < 100K |
| Short Circuit Impedance | < 4% |
