Overview

The KBGY series IT isolated power supply system developed by Kinbo Power provides a mature, reliable, and cost-effective power isolation solution for medical facilities. An isolated power system typically consists of an insulation monitor, an external alarm test panel, and an isolation transformer. Expanded names include: operating room isolated power supply, medical isolated power supply, medical IT isolated power supply, medical isolation power, medical leakage detector, medical leakage current detector, medical insulation tester, and operating room insulation tester. Isolation transformers are used to separate non-protected areas from protected areas, and IT system power is derived from the secondary side of the isolation transformer to prevent ground fault currents. It is widely used in Category II facilities: various operating rooms, recovery rooms, intensive care units, cardiac monitoring rooms, etc. In Category II facilities, each room must be equipped with at least one medical IT isolated power system, which includes a dedicated isolation transformer and an insulation monitor.

As a specialized Chinese provider of medical IT isolated power supplies and transformer systems, Kinbo Power offers products and services including medical IT isolated power supplies, medical isolated power, medical isolation transformers, insulation monitors, medical IT isolated power systems, remote control systems for isolated power supply, remote testing terminals for insulation monitoring, current transformers, 24V dedicated power supplies, and provides OEM customization services. The products developed can fully replace foreign equivalents of IT isolated power systems (including Bender, Schneider, Griema, etc.), offering a significant price advantage, comparable overall performance, high cost-effectiveness, user-friendly operation for Chinese users, and greatly facilitating the use and maintenance of the products.

Specifications and Configurations

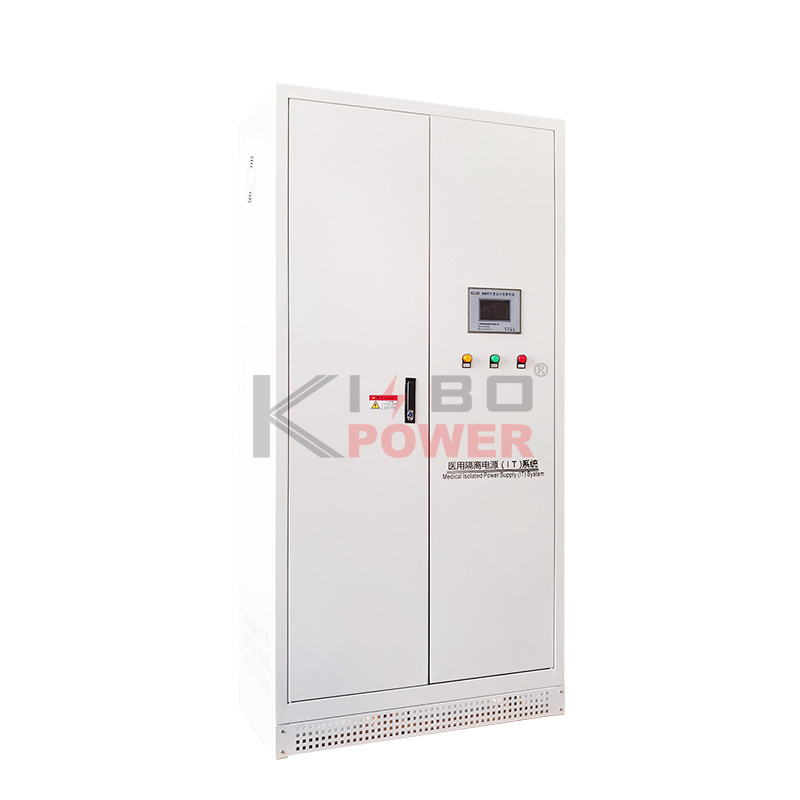

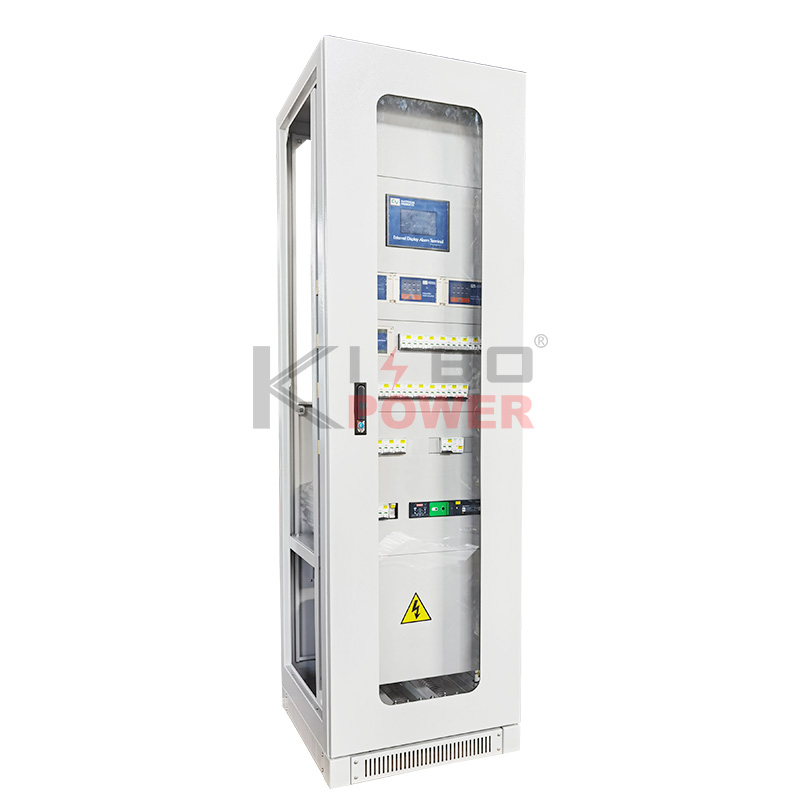

1) ICU/CCU Ward Isolated Power Cabinet

KBYGG-1 series ICU/CCU ward isolated power cabinet. Main function: Provides a safe and reliable IT system isolated power supply for ICU/CCU wards, with insulation monitoring for IT systems.

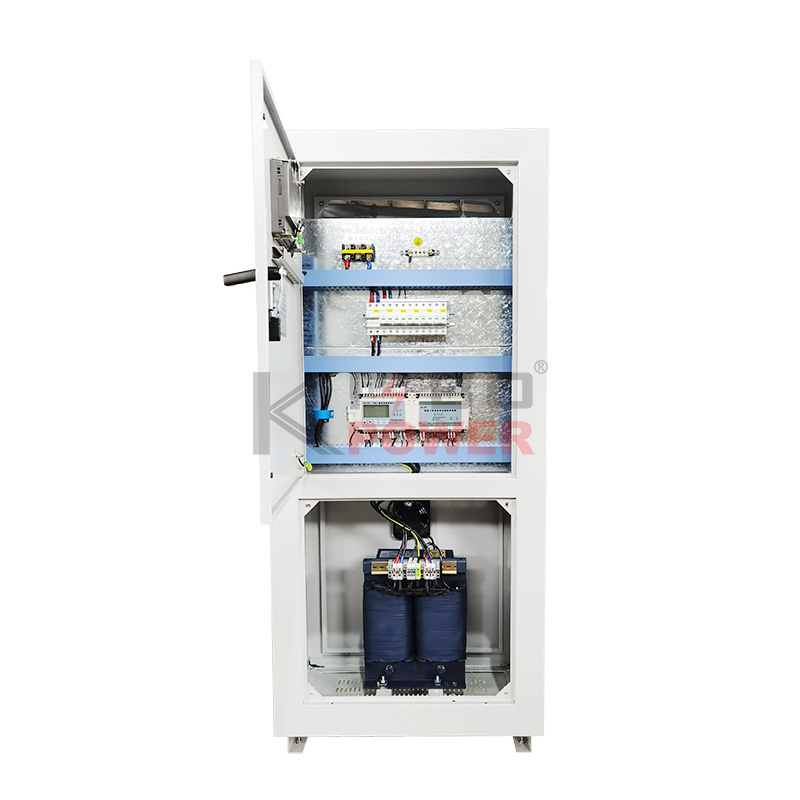

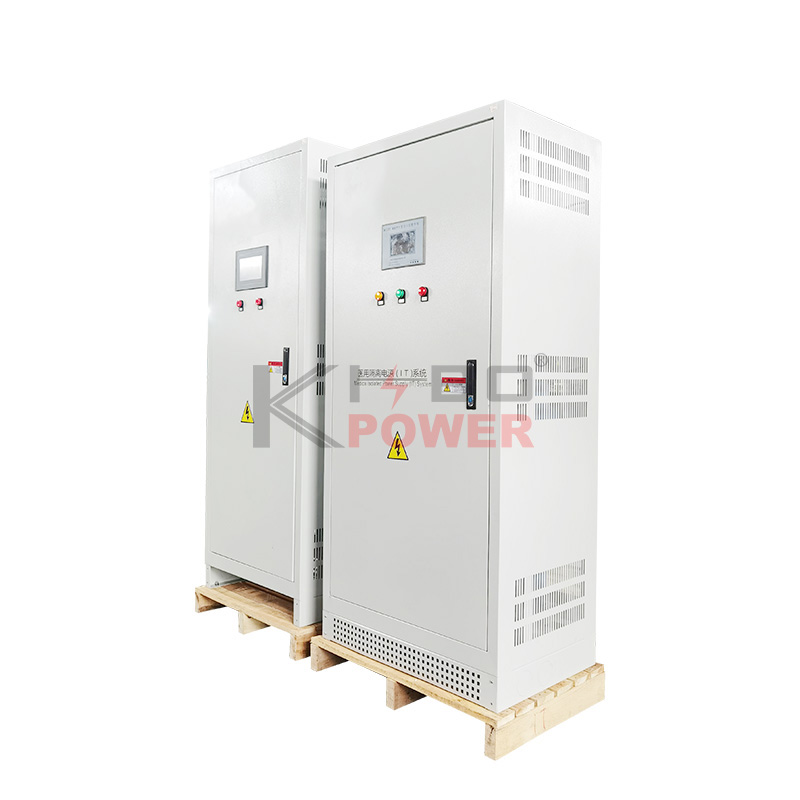

2) Operating Room Isolated Power Cabinet

KBYGG-2 series operating room isolated power cabinet. Main function: Provides a safe and comprehensive power solution for various operating rooms, ensuring a reliable IT system isolated power supply for critical surgical equipment, with insulation monitoring for IT systems.

3) Medical IT Distribution System Insulation Monitoring Device

KBITJ Insulation Monitor. Main function: Provides real-time monitoring and fault alarm for the insulation resistance of the monitored IT system to ground, load current of the isolation transformer, and transformer winding temperature.

KBITP10-24 DC Regulated Power Supply. Main function: Dedicated DC regulated module for instrumentation, rail-mounted.

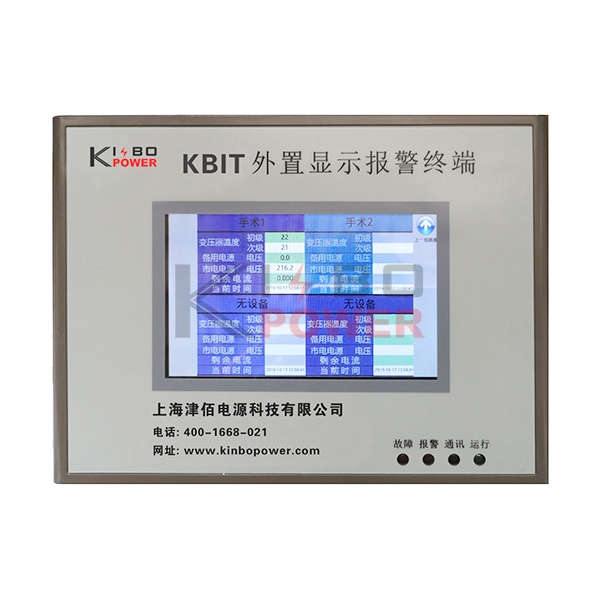

KBITY Alarm and Display Instrument. Main function: Displays insulation resistance and transformer load rate in real-time; allows remote setting of insulation monitor alarm thresholds.

KBH-0.66P26 Current Transformer. Main function: Protective current transformer used with the KBITJ insulation monitor. It can measure currents up to 50A with a transformation ratio of 2000:1.

4) Isolation Transformer

KBYG Series Isolation Transformer. Main function: Dedicated isolation transformer providing safe power isolation for operating rooms and intensive care units.

Different Solutions for Different Scenarios

1) ICU, CCU Ward Power Distribution Solution (Example: KXBYGG-1 Isolation Power Distribution Cabinet System)

2) Operating Room Power Distribution Solution (Example: KXBYGG-2 Isolation Power System)

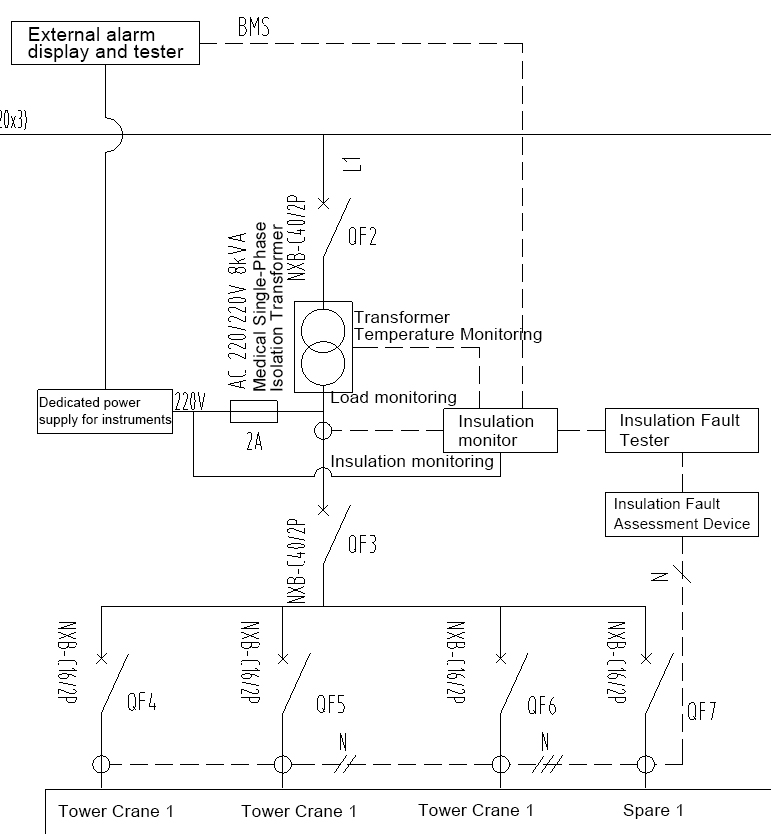

 Common Circuit Diagram Examples
